Product Features:

1.Display parameters:

(SpO2) oxygen saturation measurement range: 70-99% measurement accuracy: 70%-90% ± 2%. If the value is below 94%, Insufficient oxygen.

(PR) BPM measurement range: 30 bpm - 250 bpm.

(PI) measurement range: 0.2%-30% , PI means Perfusion Index, it shows Blood perfusion ability.

(RR) Respiratory Frequency Detection-Normal Adult Breathe 16-20 Times Per Minute. Respiratory pulse ratio is 1:4, each one breath, four pulse beats. Normal child breathe faster than adult, breathe 20-30 times per minute, newborn could breathe 44 times per minute.

2. Display Screen: Blue and Yellow two-color OLED screen.

3. Display Directions: Four Directions, Four display modes

4. Energy saving: Two AAA batteries could use more than 40 hours

5. Voltage warning: There has Low voltage warning.

6. Auto power off:Auto power off in 8 secends when there has no signal.

7. Advantage: Integrating blood oxygen probe and processing display module, the product is easy to use, low power consumption, small size, light weight, and portable.

Remark:

1. Please check the direction of the battery. The 2 batteries are in different direction, please make the +/- right.

The finger must be connected deep enough, or it can't take the measure

3. Please do not tremble the finger or move the body during the measurement, or the data might be unsteady.

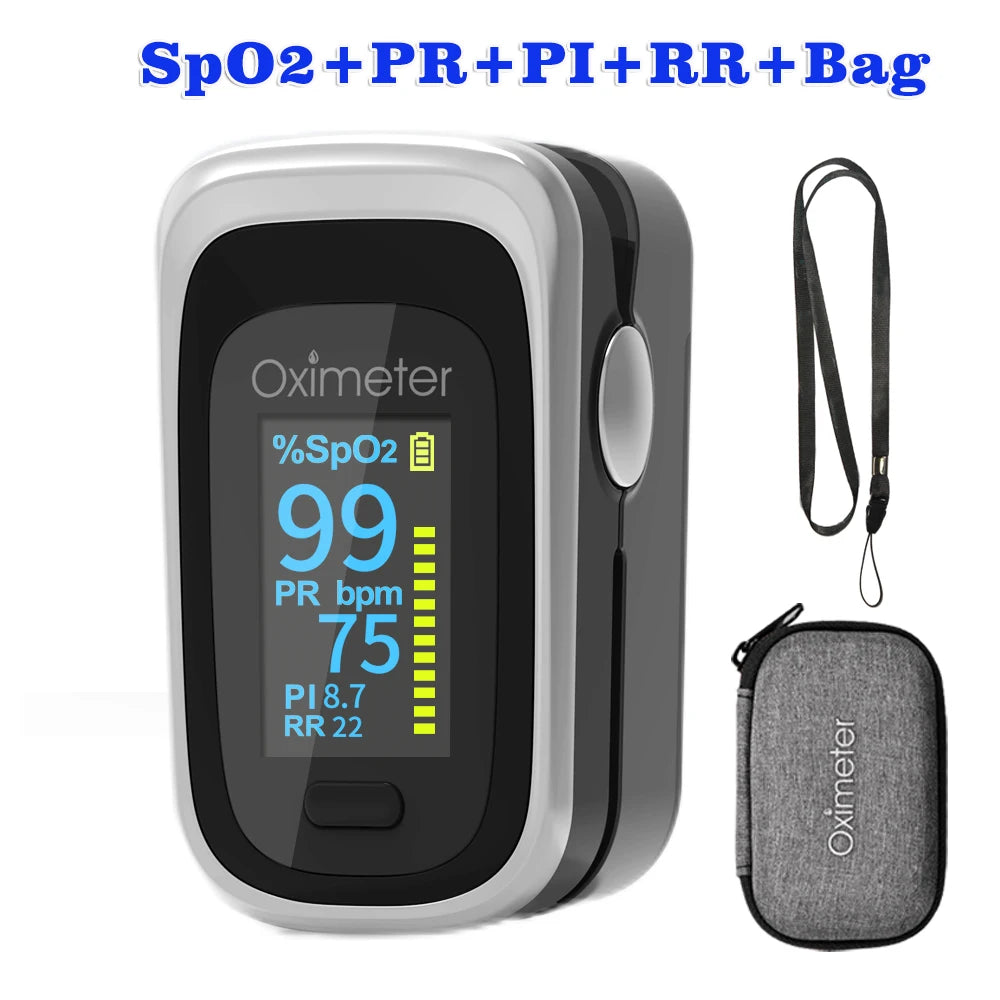

Package content:

1. 1 x Oximeter

2. 1 x cord

3. 1 x Beautiful Box

4. 1 x English menu

For transportation reason, batteries not included.

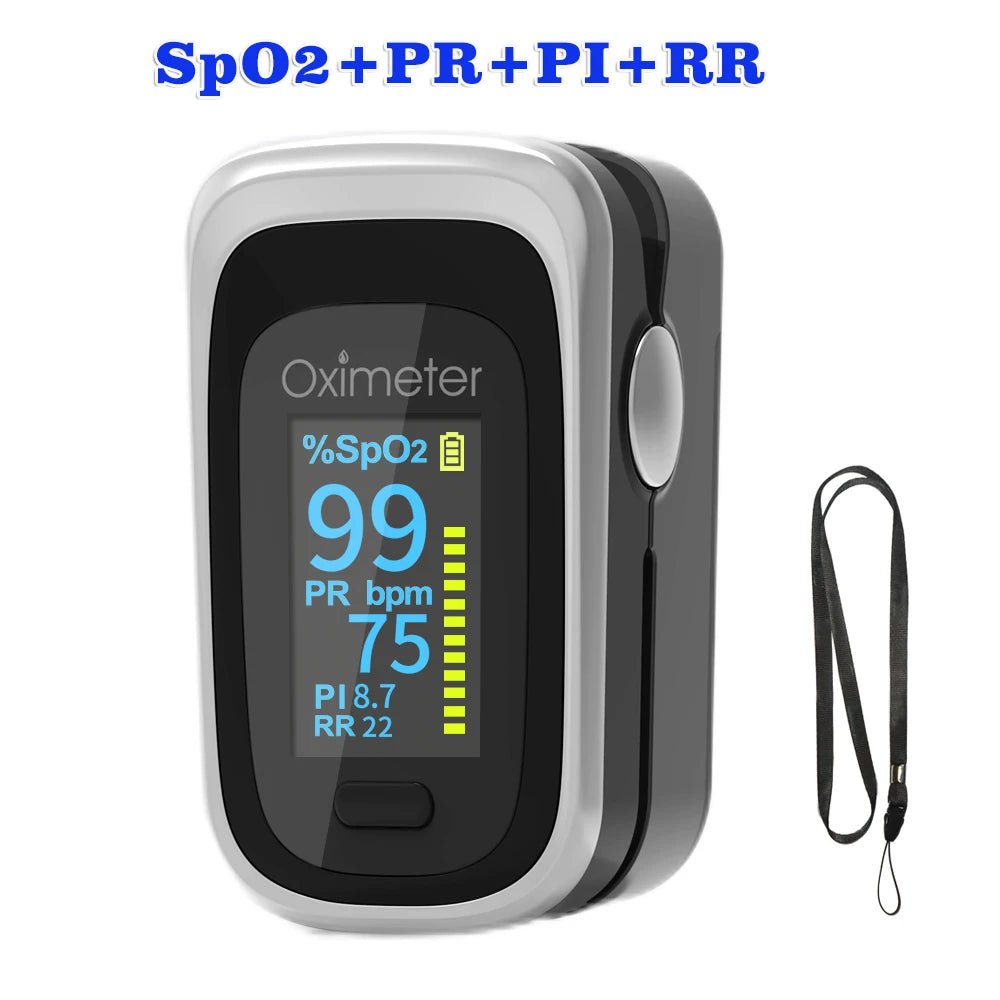

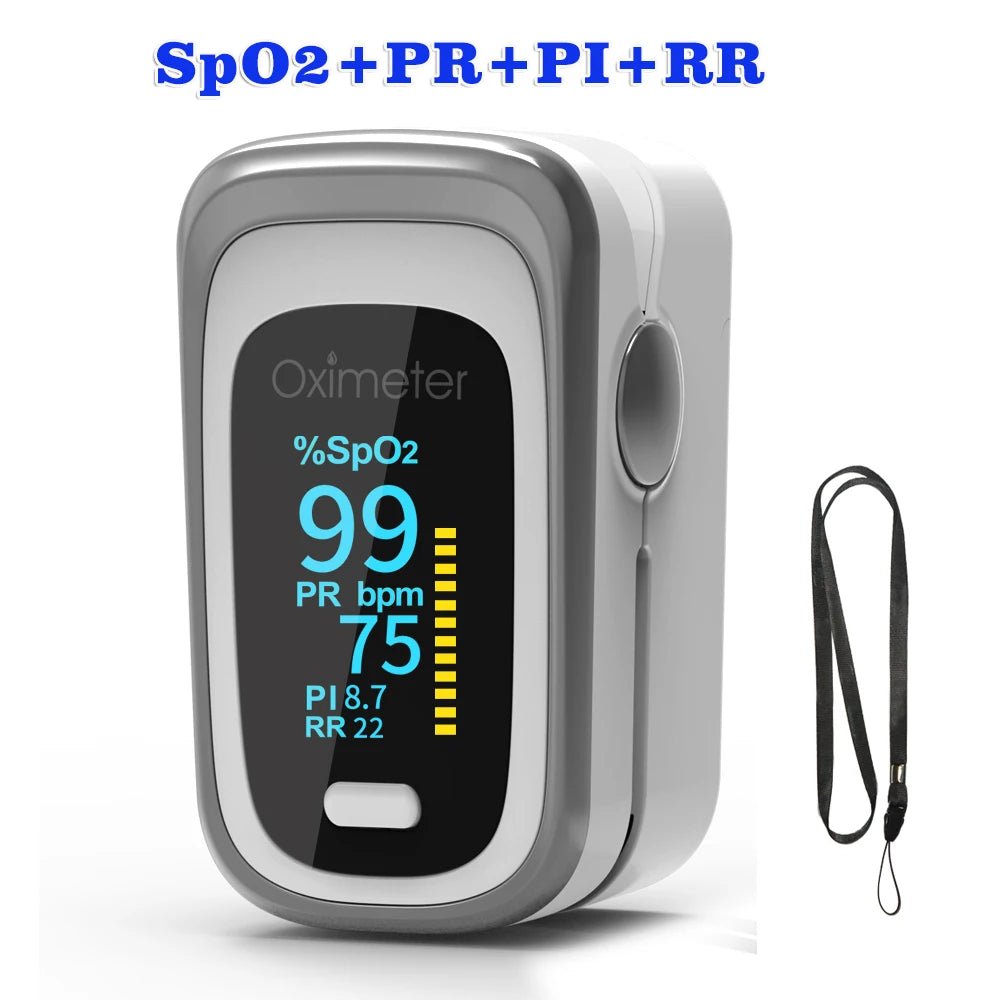

130R(oled):SPO2,PR,PI,RR

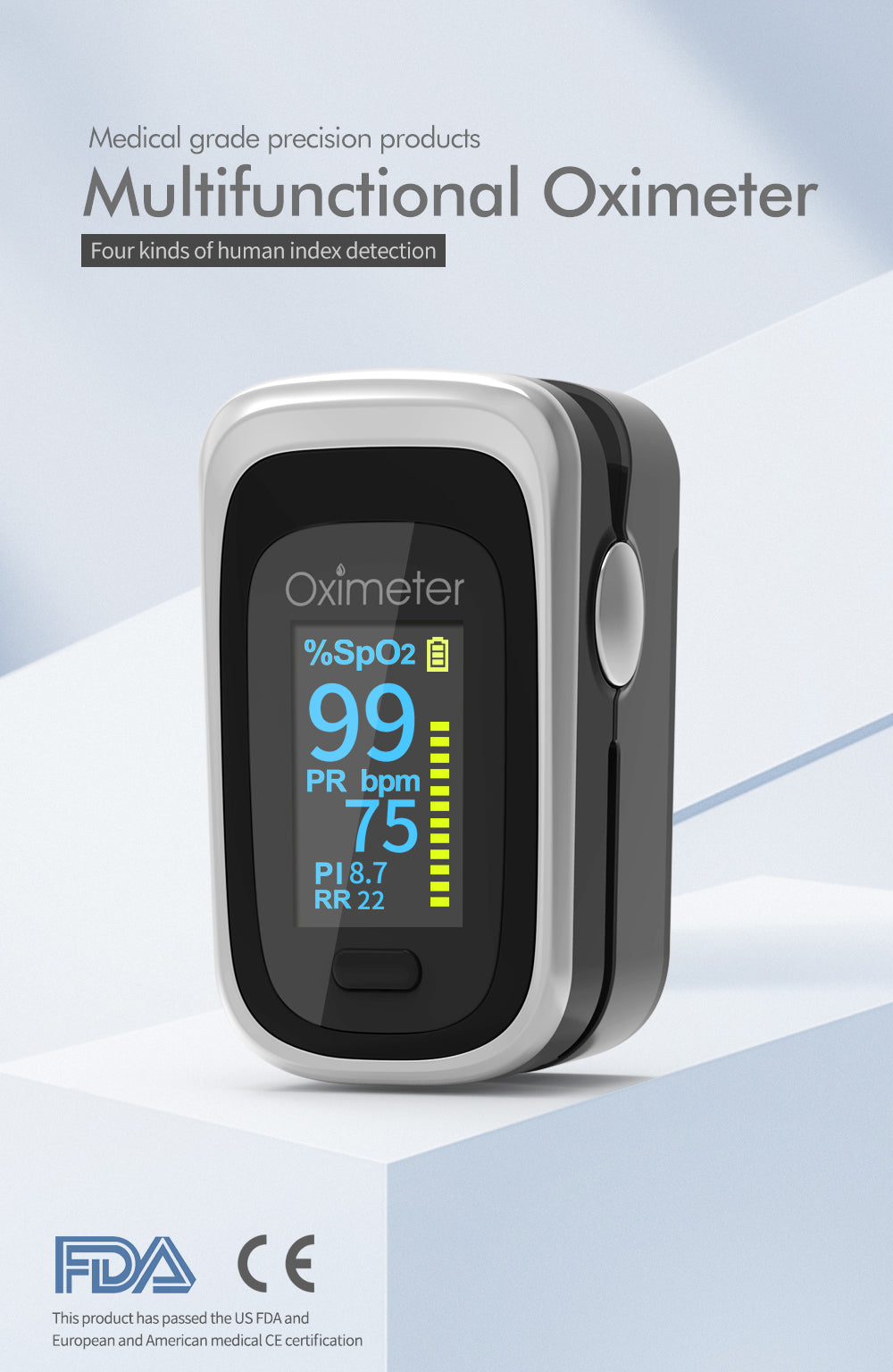

Medical grade precision products

Multifunctional Oximeter

Four kinds of human index detectionPrecise measurement Non-invasive and paimless Quick analysis OLED screen

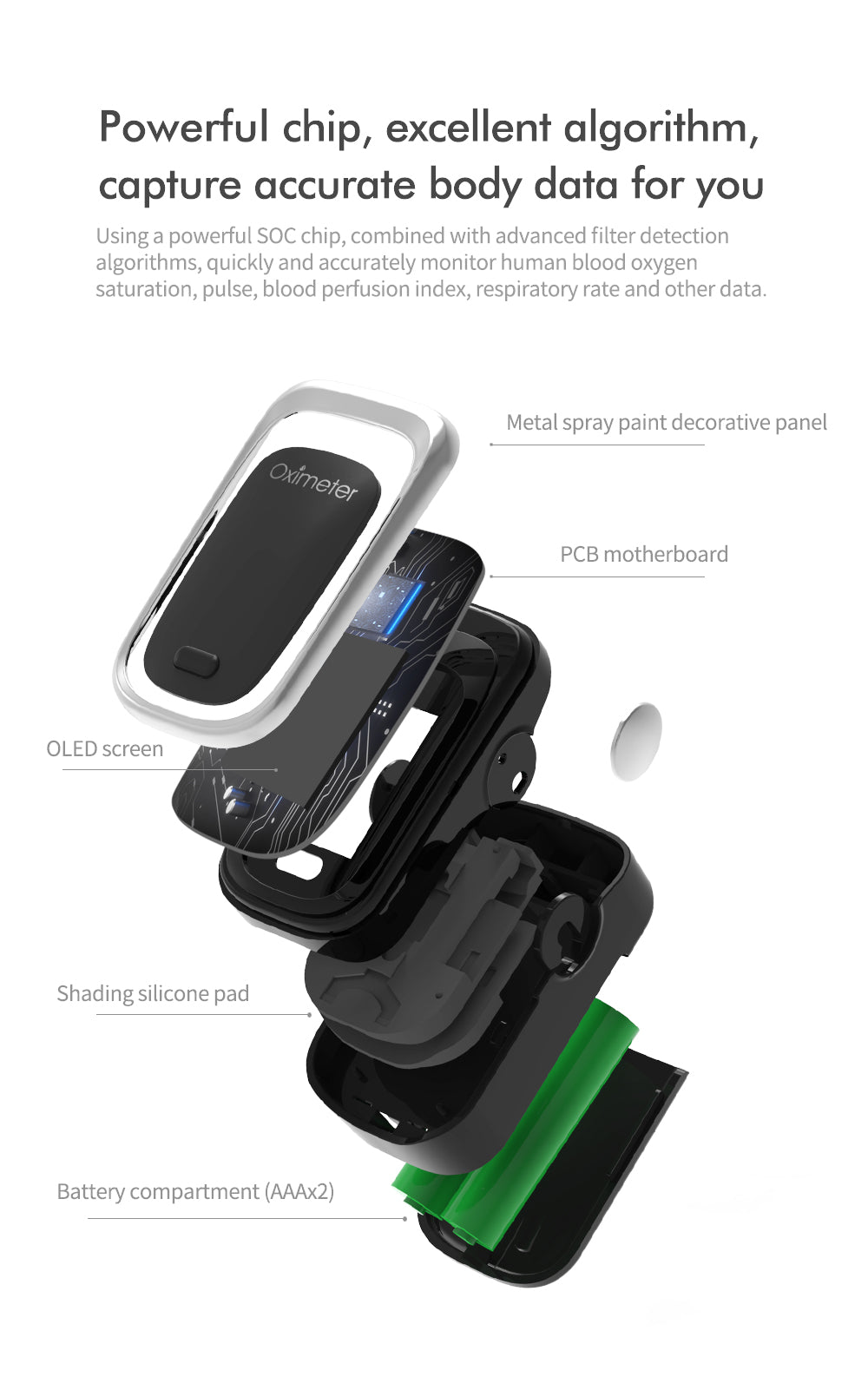

A variety of functions Small and portable Automatic shut-down Metal paint framePowerful chip,excellent algorithm,capture accurate body data for you

Using a powerful SOC chip,combined with advanced filter detection algorithms,quickly and accurately monitor human blood oxygen saturation,pulse,blood perfusion index,repiratory rate and other data.

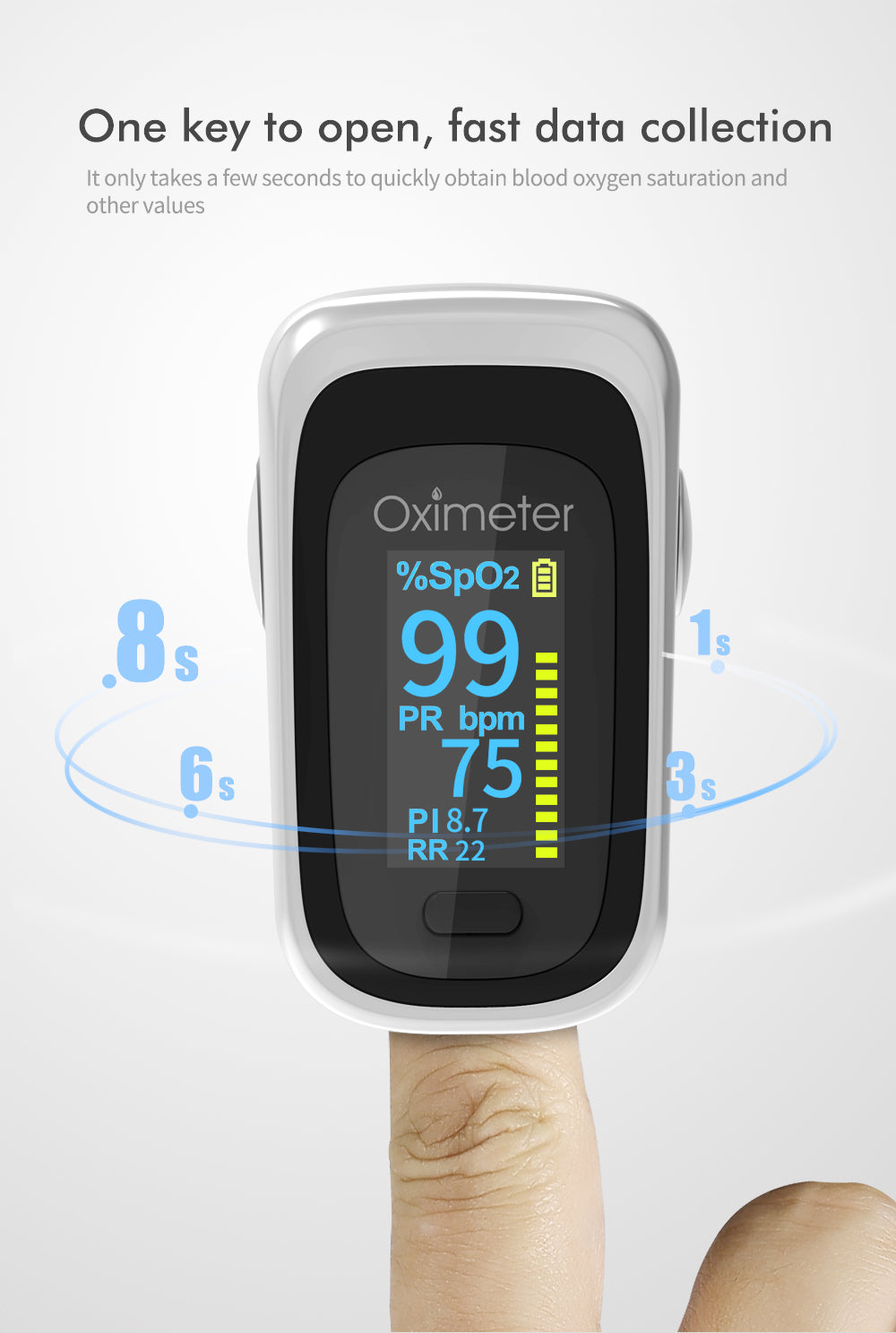

One key to open,fast data collection

It only takes a few seconds to quickly obtain blood oxygen saturation and other values

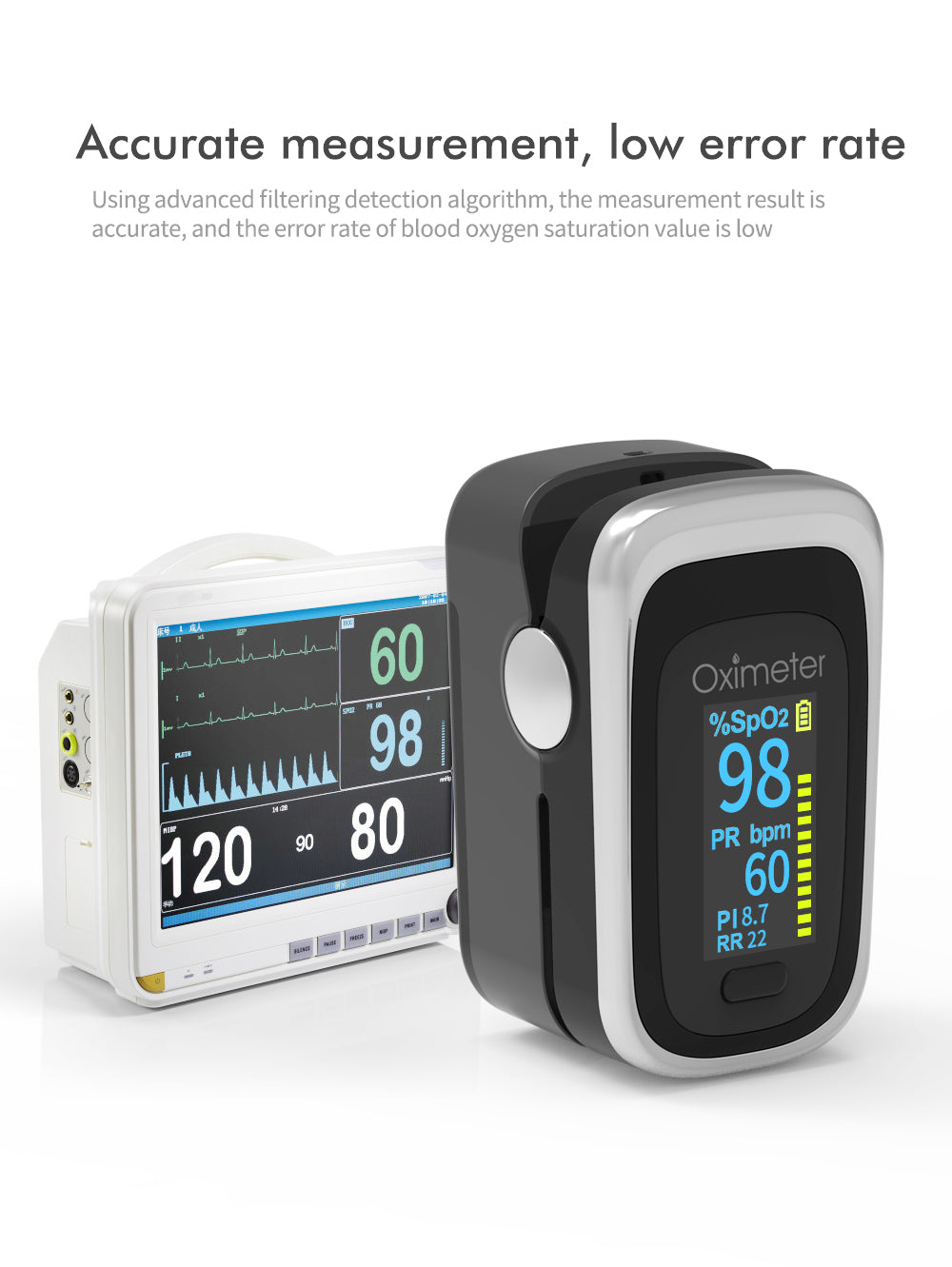

Accurate measurement,low error rate

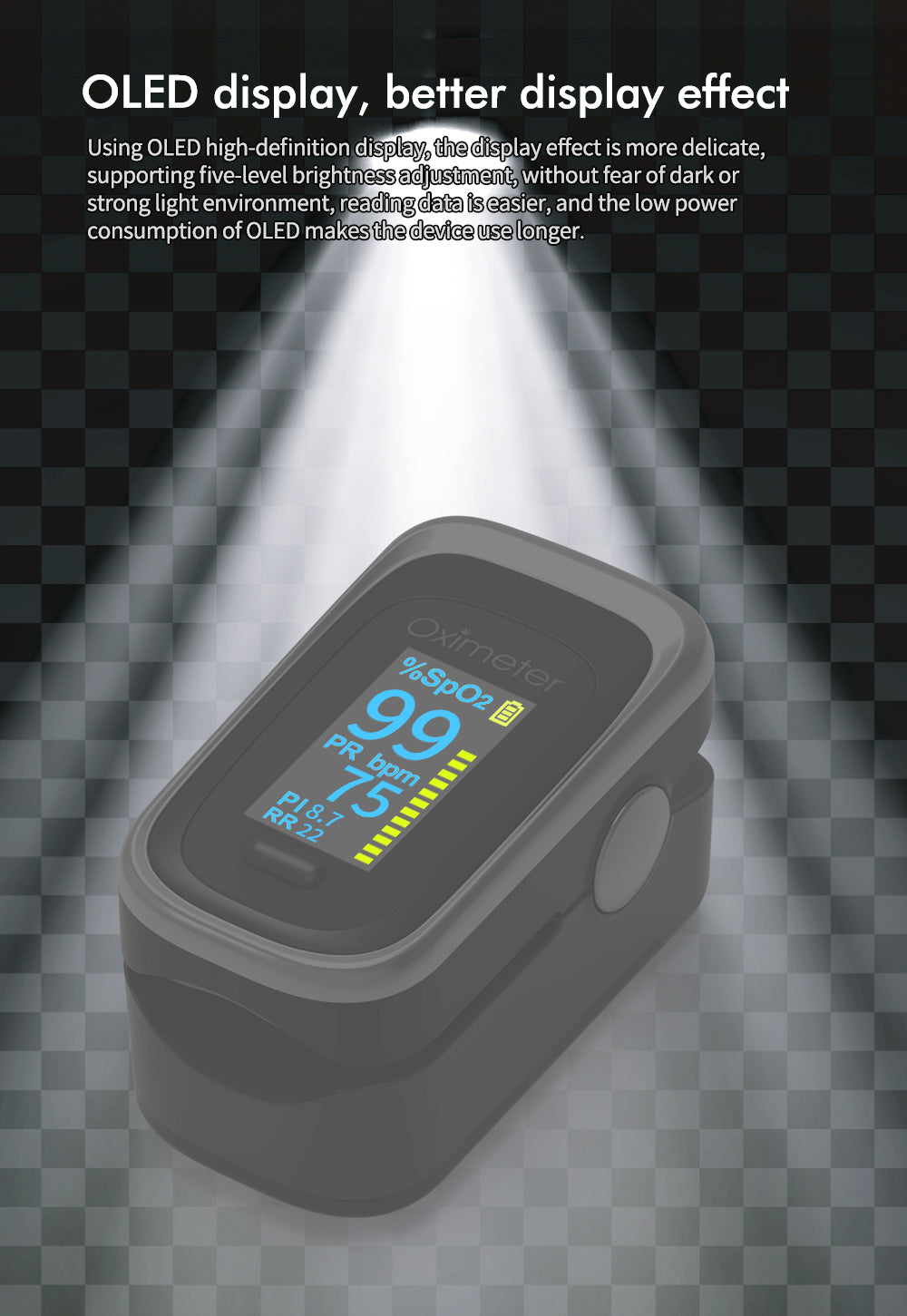

Using advanced filtering detection algorithm,the measurement result is accurate,and the error rate of blood oxygen saturation value is lowOLED display,better display effect

Using OLED high-definition display,the display effect is more delicate,supporting five-level brightness adijustment,without fear of dark or strong light environment,reading data is easier,and the low power

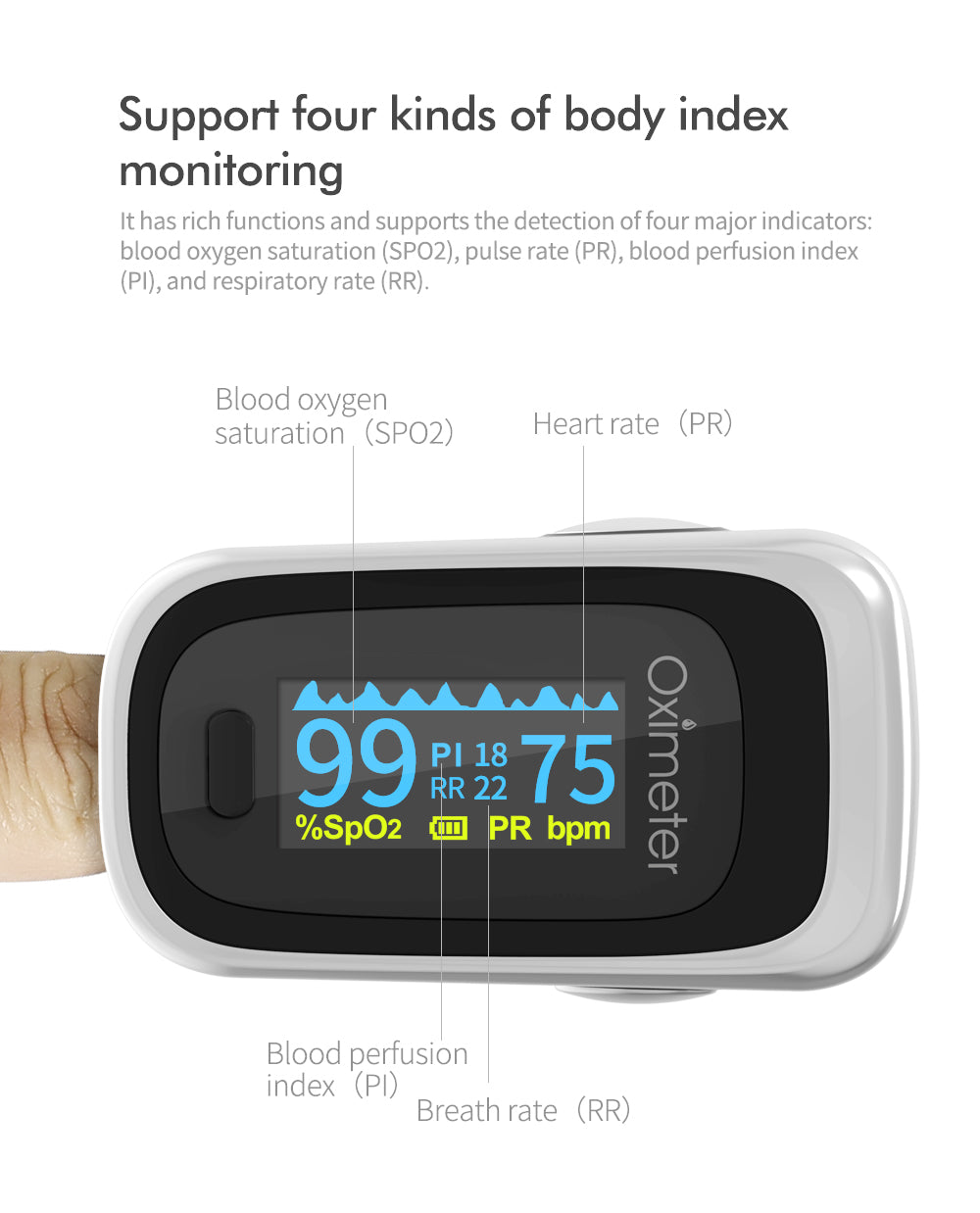

consumption of OLED makes the device use longer.Support four kinds of body index monitoring

It has rich functions and supports the detection of four major indicators:blood oxygen saturation(SPO2),pulse rate(PR),blood perfusion index(PI),and respiratory rate(RR).Microcomputer intelligent programming

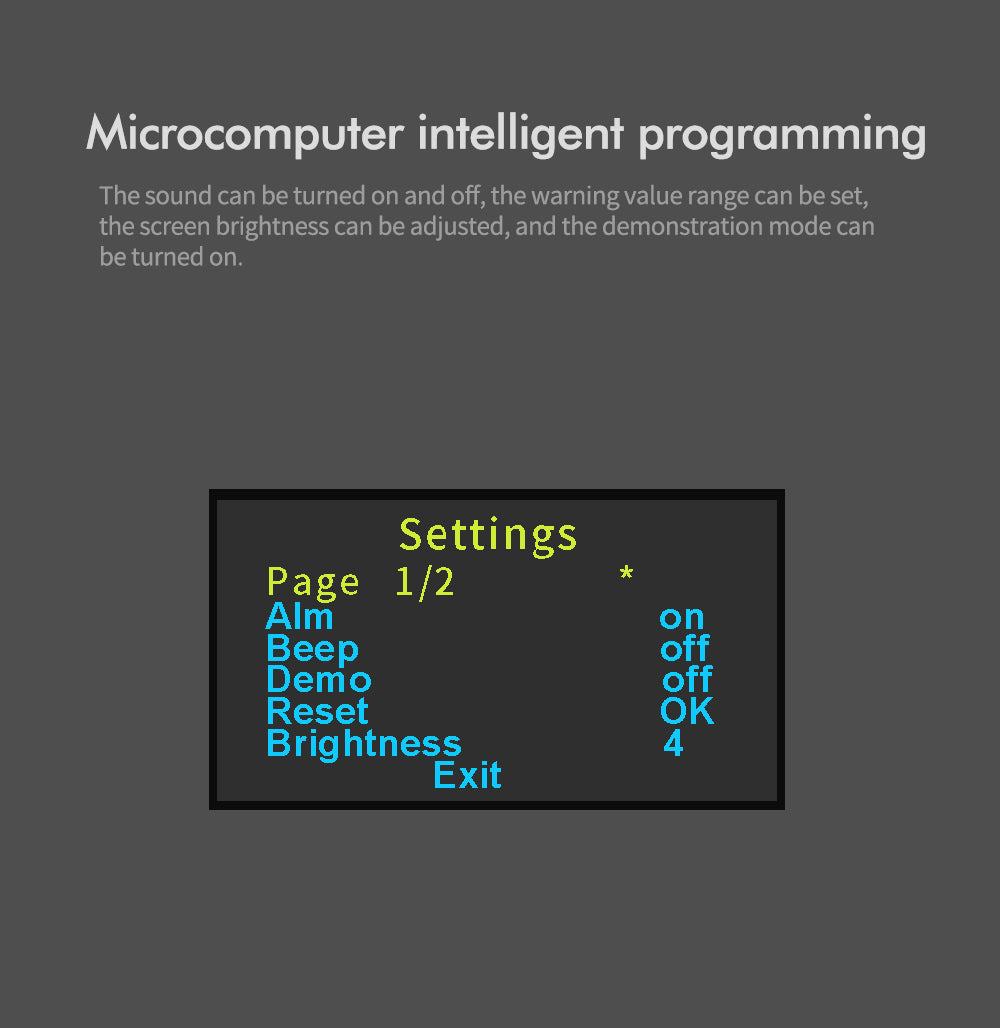

The sound can be turned on and off,the warning value range can be set,the screen brightness can be adjusted,and the demonstration mode can be turned on.All silicone red light shielding silicone finger cots

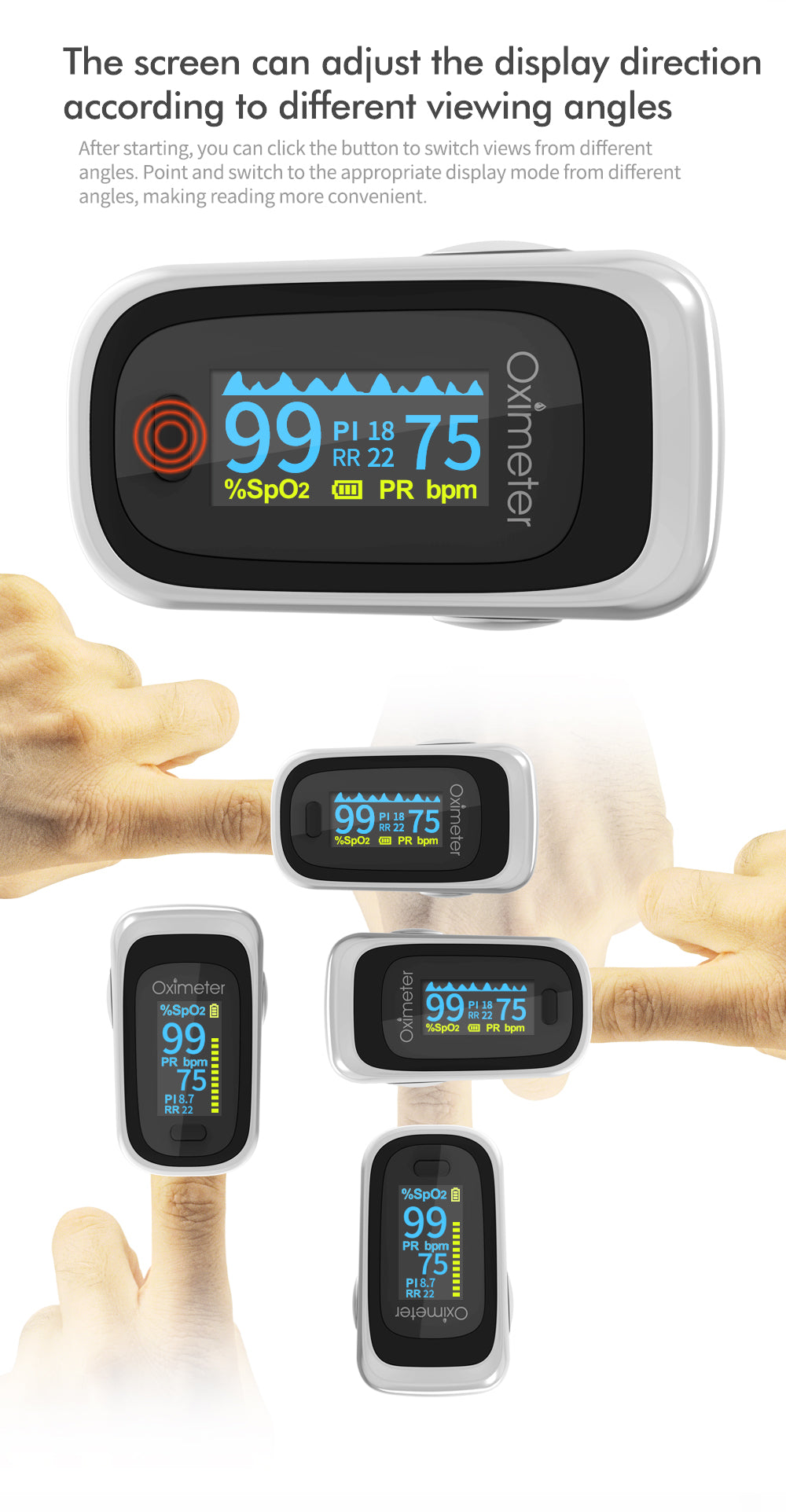

The skin-friendly inner wall is made of fully wrapped silica gel,which is comfortable to hand,good shading effect,and non-invasive red light penetration filter measurement.Accurate measurement data.The screen can adjust the display direction according to different viewing angles

After starting,you can click the button to switch views from different angles. Point and switch to the appropriate display mode from different angles,making reading more convenient.

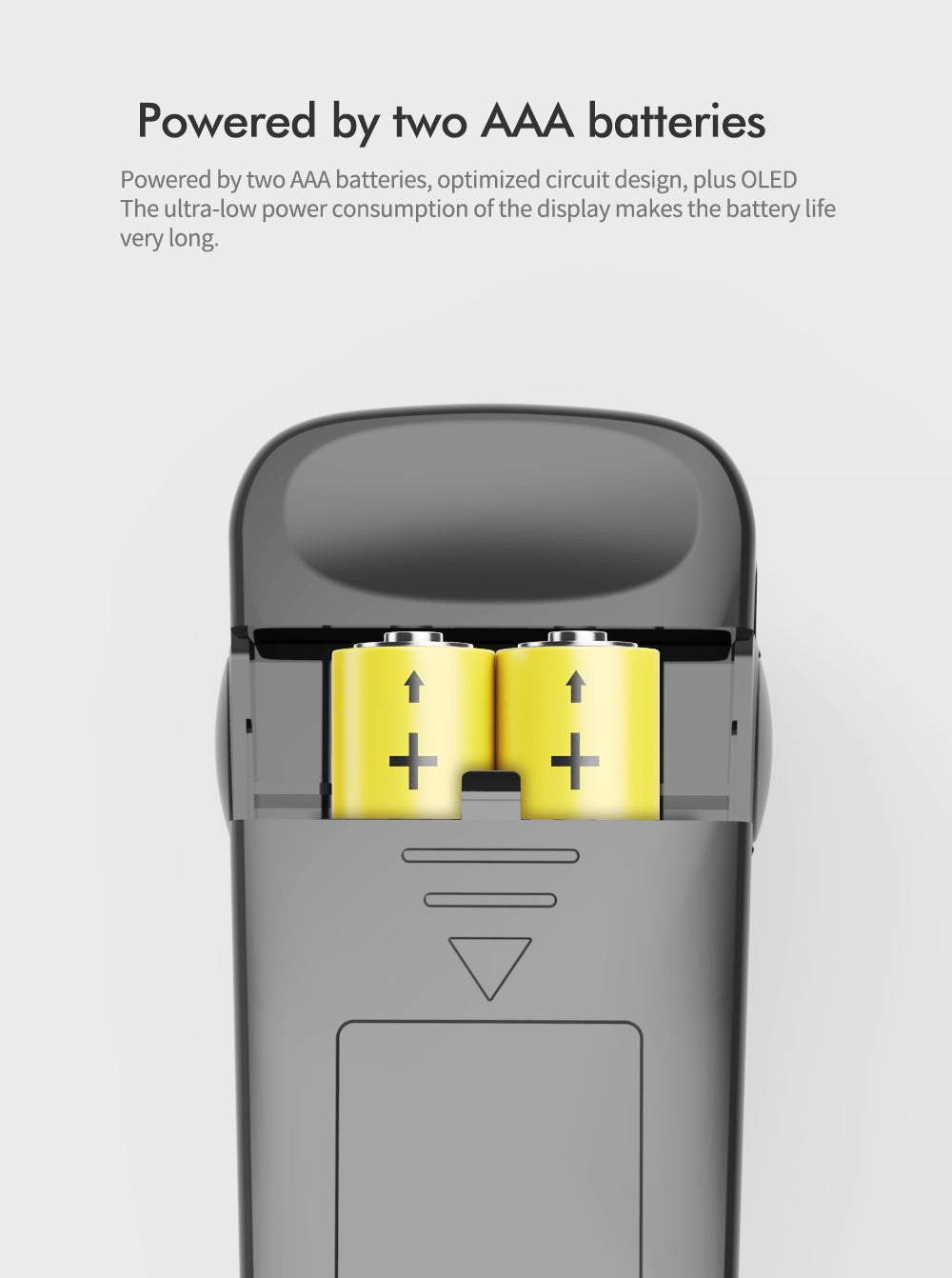

Powered by two AAA batteries

Powered by two AAA batteries, optimized circuit design, plus OLED The ultra-low power consumption of the display makes the battery life very long.

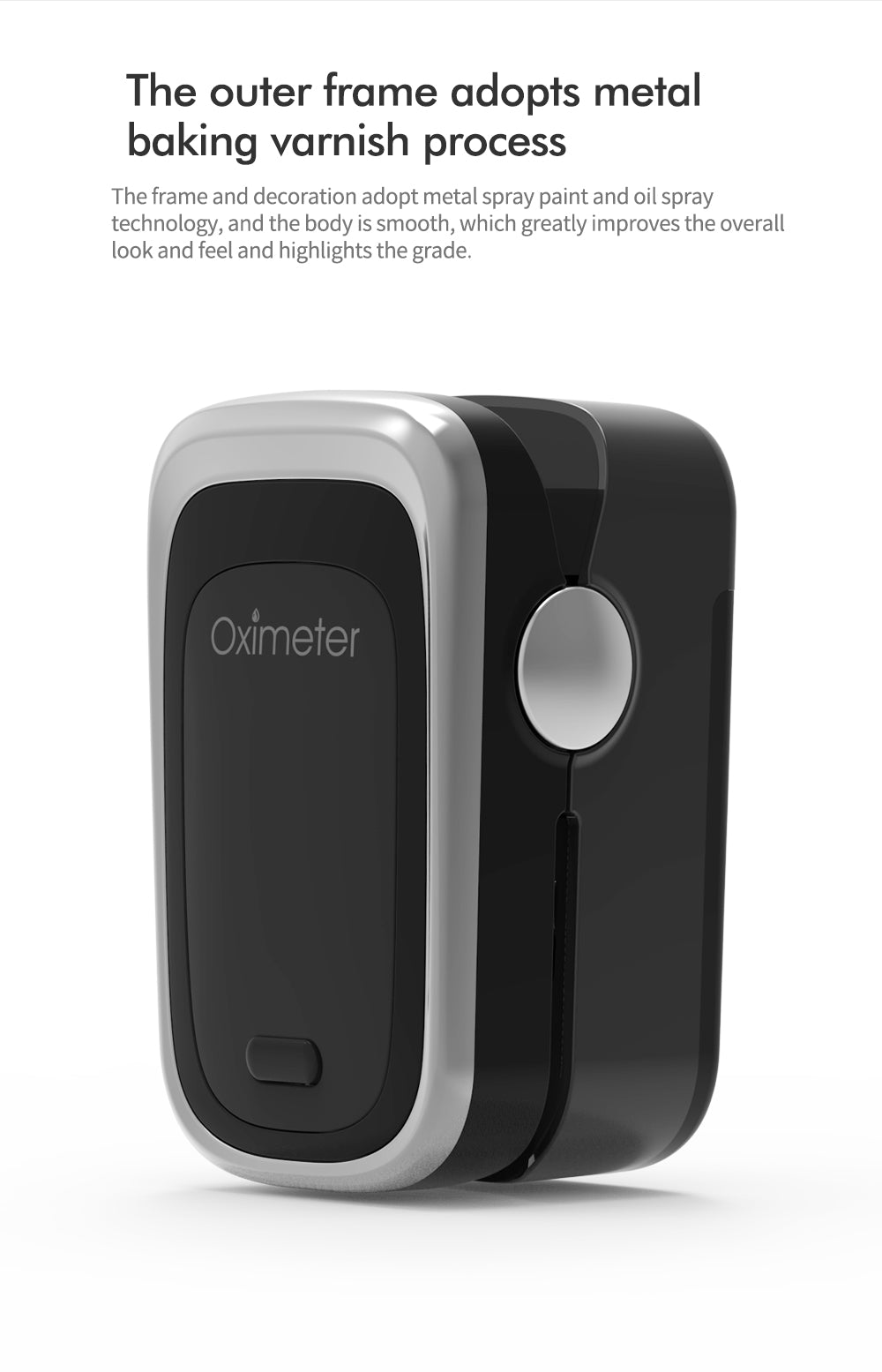

The outer frame adopts metal baking varnish process

The frame and decoration adopt metal spray paint and oil spray technology, and the body is smooth, which greatly improves the overall look and feel and highlights the grade.

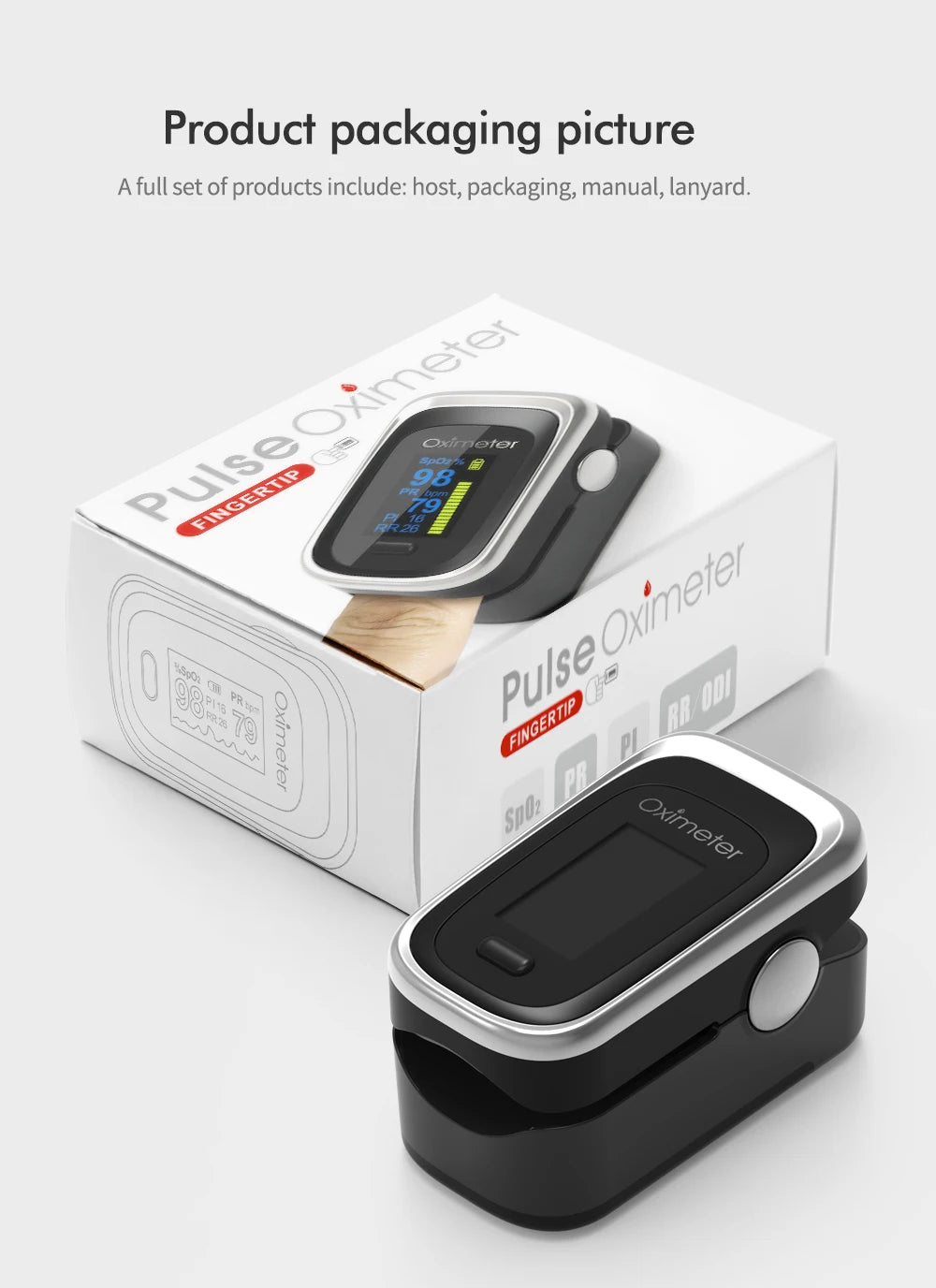

Product packaging picture

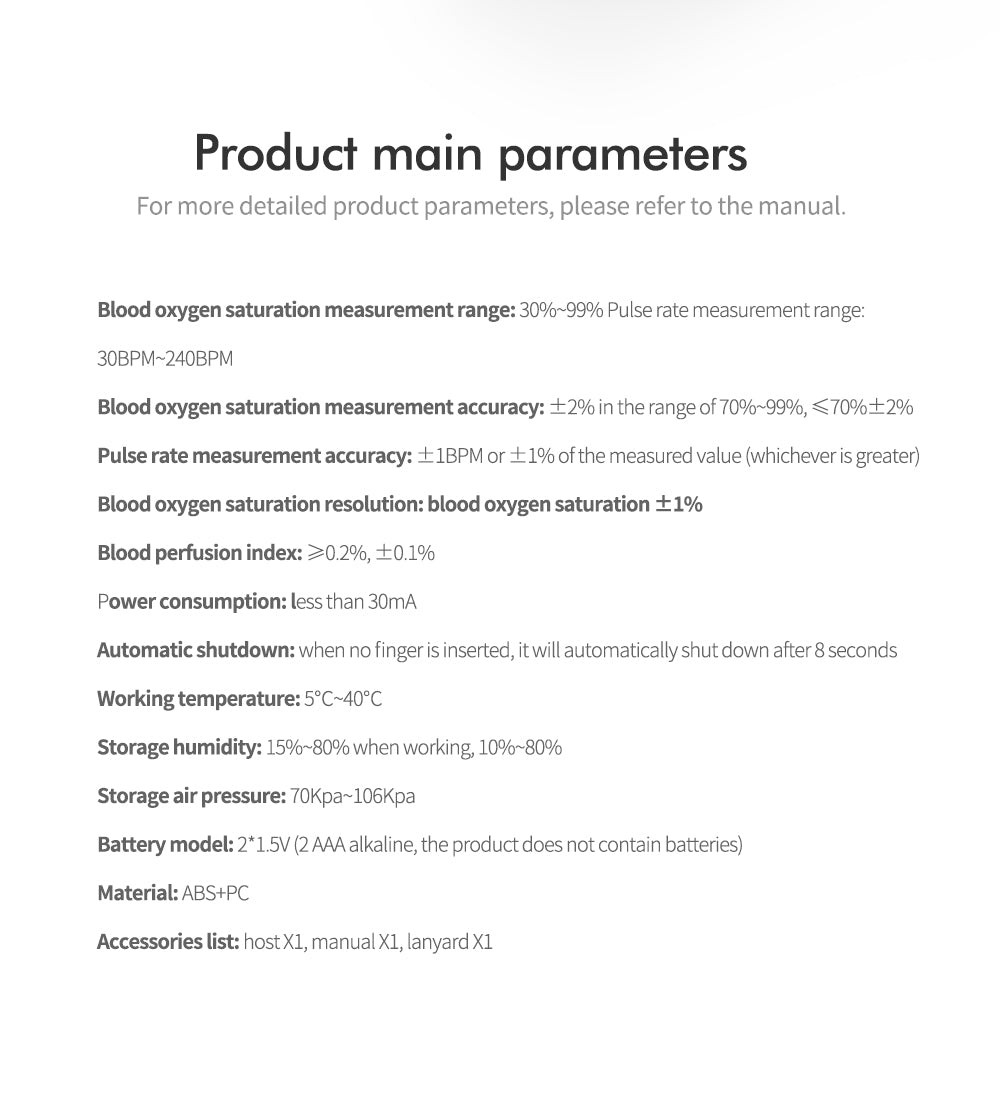

A full set of products include: host, packaging, manual, lanyard.Product main parameters

For more detailed product parameters,please refer to the manual.

Blood oxygen saturation measurement range: 30%~99%

Pulse rate measurement range:30BPM~240BPM

Blood oxygen saturation measurement accuracy: ±2% in the range of 70%~99%,≤70%±2%

Pulse rate measurement accuracy: ±1BPM or±1% of the measured value(whichever is greater)

Blood oxygen saturation resolution: blood oxygen saturation ±1%

Blood perfusion index:≥0.2%,±0.1%

Power consumption:less than 30mA

Automatic shutdown:when no finger is inserted, itwill automatically shut down after8 seconds

Working temperature:5°C~40°C

Storage humidity:15%~80% when working,10%~80%Storage air pressure: 70Kpa~106Kpa

Battery model:2*1.5V(2AAA alkaline,the product does not contain batteries)

Material:ABS+PC

Accessories list:hostXl,manualXl,lanyardXl

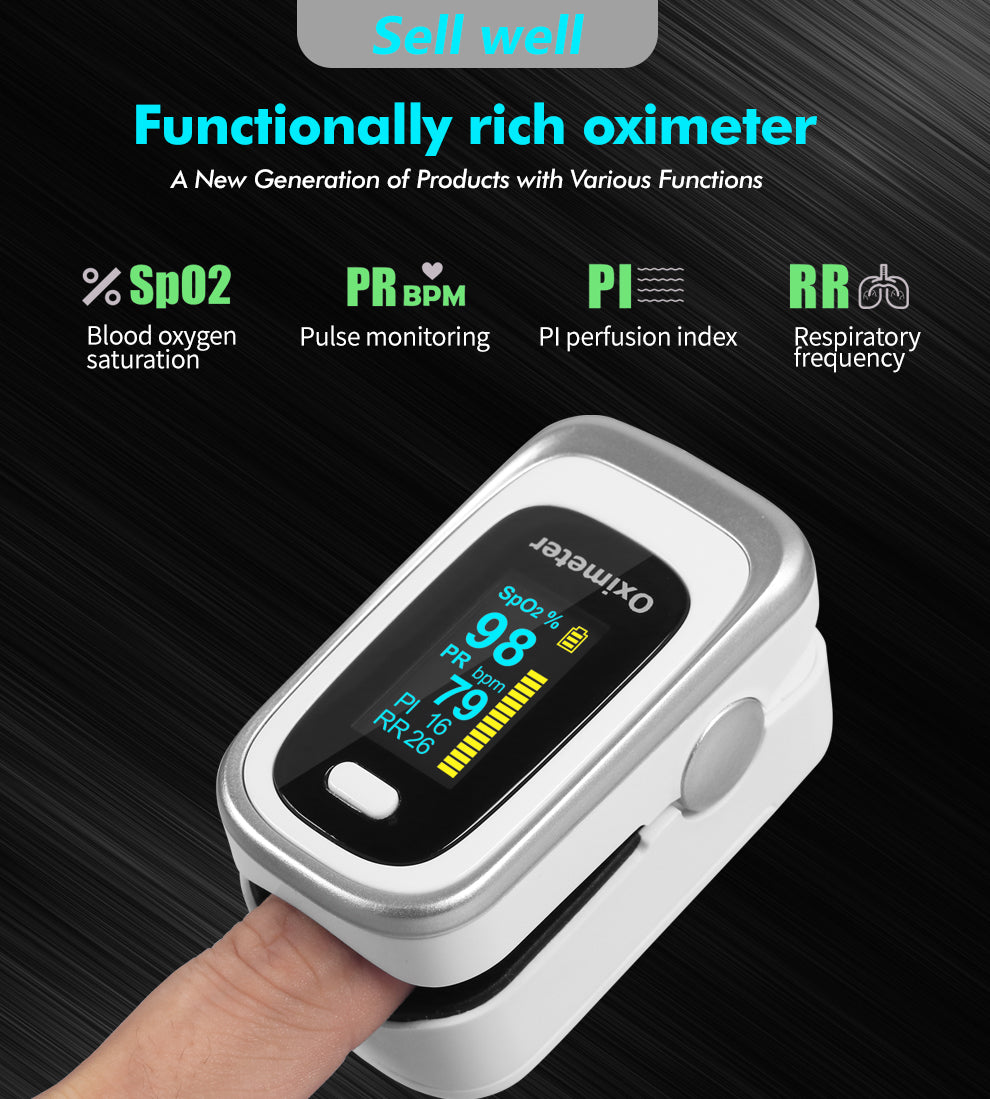

Functionally rich oximeter

A new generation of products with various functions

SpO2                           PR                       PI                           RR

bleed oxygen saturation       Pulse monitoring        PI perfusion index         Respiratory frequency
