Description
SPECIFICATIONS
Accuracy Class: Kids Toy
Attention: Adult supervision required
Battery Needed: 2 pieces of AA batteries (not included)
Brand Name: PAXEROLY
Choice: yes
DIY Supplies: ELECTRICAL
Hign-concerned Chemical: None
Item Name: Electric circuit DIY set for school lab
Measuring Accuracy: This is kids toy, not industrial grade, not professional grade
Model Number: JX-D03
Operating Temperature: 10-40℃
Origin: Mainland China
Power Supply: Battery
Usages: Physics electricity teaching aids
User's Guide: Only available in English version
Users: Teachers, children aged 12 and above
What's in the box: 2x light bulb holders, 2x battery holders, 2x switches, 1x voltmeter(3V and 15V measure range), 1x ammeter(0.6A and 3A measure range), 1x slide rheostat, 1x resistors plate, 3x light bulbs, 10x wires, 1x English user guide, 1x plastic storage box
semi_Choice: yes
DIY Electric Circuit Kit Electrical Experiment Set School Science Lab Teaching Aids Science Toy Physics Education Ammeter Voltmeter Sliding Rheostat Resistor
Attention (must read before purchasing)
1. User's guide is available in English only!
2. Adult supervision required! This is a physics teaching aid, although there is an instruction manual, student still need to be coached by a teacher or a parent with related knowledge of electricity while using the product.
3. Children's teaching aids only! All parts are not of industrial grade precision.
4. Suitable for children aged 12 and above. Recommended for students in primary school and junior high school
5. Size information on pictures or specifications are for reference only. Manual measurement may have an error of 2-6mm, wires with an error of 2-3cm. And size may vary between products produced in different batches.
6. This product does not include battery. Please prepare 2 pieces of AA batteries yourself.
Ammeter Note
In a parallel circuit, you may find out that the main current is slightly less than the sum of the branch currents. The reason is: the ammeter itself has an internal resistance that reduces the current when it is connected to the circuit. Moreover, the decrease in the main current is more than the decrease in the branch currents, so you may notice that the main current is slightly less than the sum of the branch currents.
Warnings
【ADULT SUPERVISION REQUIRED】
【CHOKING HAZARD】
Please prevent kids from swallowing small parts to avoid choking.
【ELECTRIC SHOCK HAZARD】
Experiments can only use 2 AA batteries. Please prevent children from inserting wires into wall sockets or connecting them to other high-voltage power sources.
【BURN HAZARD】
1. Do not keep the circuit connected for a long time to prevent overheating.
2. Please avoid directly connecting the two ends of the battery, otherwise a short circuit may occur and the circuit may be burned out.
3. Don't connect an ammeter directly to the poles of battery without passing through any electric appliance.
4. Circuit gets hot when closed. If you want to touch any parts, please disconnect the switch and let it cool down before touching.
Specifications
【Item Name】 Advanced Electric Circuit DIY Set
【Item Classification】 Physics Electricity Teaching Aids
【Model】JX-D03
【Voltmeter】 3V and 15V measure range, 0.1V division for 3V, 0.5V division for 15V. Note: Children's teaching aids only! All parts are not of
industrial grade precision.
【Ammeter】 0.6A and 3A measure range,0.02A division for 0.6A, 0.1A division for 3A. Note: Children's teaching aids only! All parts are not of industrial grade precision.
【Sliding rheostat】 max. 20Ω

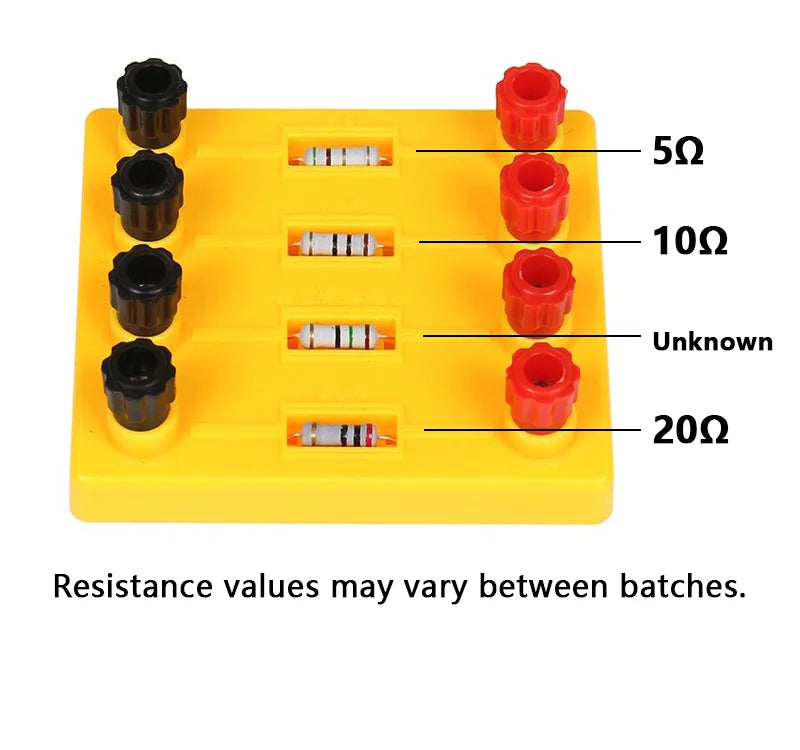

【Resistors on pad】 5Ω,10Ω,20Ω,unknown resistor (resistors value may vary between products produced in different batches)
Product Usage
1.【Learn Physics Knowledge】 Help to learn series circuit and parallel circuit, learn how to use ammeter, voltmeter and slide rheostat, learn how to measure current and voltage in series and parallel circuit, learn Ohm's law, learn the relationship between current, voltage and resistance, learn how to measure and calculate electrical appliances power.
Recommended for students aged 12 year old and above who are in primary school or junior high school.
2.【Conduct Experiments】Exercise student's ability to do experiments, improve DIY hands-on skills and scientific thinking skills.
3.【Scientific Enlightenment】cultivate students' interest in science
Usage Scenarios: physics education, electricity science teaching, student physics lab equipment, kids science toy, children's birthday gift, student scientific present, parents-child campaign
Product Size
1. Please note that the size of parts may vary between different batches.
2. All the sizes marked on the pictures are manual measurement with an error of 2-6mm, conducting wires size measurement 2-3cm.
【Ammeter】5cm*8.7cm*8.1cm
【Voltmeter】5cm*8.7cm*8.1cm
【Sliding rheostat】12cm*6.5cm*3.7cm
【Battery holder】8.3cm*2cm
【Light holder】7.5cm*3.7cm
【Resistors pad】7.5cm*6.5cm
【Wires】19-21cm
【Storage box】23cm*16.5cm*6.2cm
Experiments can be performed
1.Series circuit connection and characteristics
2.Parallel circuit connection and characteristics
3.Short circuit experiment
4.How to use an ammeter
5.Measure series circuit current
6.Measure parallel circuit current
7.How to use a voltmeter
8.Measure battery voltage
9.Measure series circuit voltage
10.Measure parallel circuit Voltage
11.How to use rheostat
12.Ohm's law experiments (relationship between current, voltage and resistance)
13.Measure resistance by voltammetric method
14.Measure light bulb power
What's in the box
2x light bulb holders,
2x battery holders,
2x switches,
1x voltmeter(3V and 15V measure range),
1x ammeter(0.6A and 3A measure range),
1x slide rheostat,
1x resistors plate,
3x light bulbs,
10x wires,
1x English user guide,
1x plastic storage box
